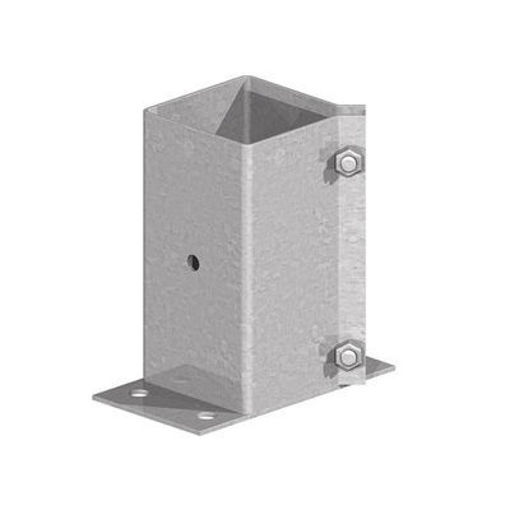

    100mm Bolt Down (Bolt-Grip)

    This post support is designed to hold a 100 x 100mm square wooden post in position when it’s not possible to concrete a post into the ground. The bolt-clamp on the side of the post support ensures a quick and secure fit. The rectangular base plate enables flush fitting next to walls/obstructions, it's also a good fit when mounted on top of walls.

    - Designed to fit 100 x 100mm square wooden posts
    - Bolt-Grip post securing system
    - Bolt down plate: 108mm x 205mm - flush fitting
    - Bolt holes: 4 x 12mm Ø holes for bolting down the base
    - Manufactured from 2mm thick steel
    - Welded construction
    - Galvanised finish for durability outdoors
    Availability: 8 in stock
    £8.60 Exc. VAT
    i h

    This post support is designed to hold a 100 x 100mm square wooden post in position when it’s not possible to concrete a post into the ground. The bolt-clamp on the side of the post support ensures a quick and secure fit. The rectangular base plate enables flush fitting next to walls/obstructions, it's also a good fit when mounted on top of walls.


    - Designed to fit 100 x 100mm square wooden posts
    - Bolt-Grip post securing system
    - Bolt down plate: 108mm x 205mm - flush fitting
    - Bolt holes: 4 x 12mm Ø holes for bolting down the base
    - Manufactured from 2mm thick steel
    - Welded construction
    - Galvanised finish for durability outdoors

    Products specifications
    Fits Size of Post100 x 100mm
    FinishGalvanised
    *
    *
    *
    *
