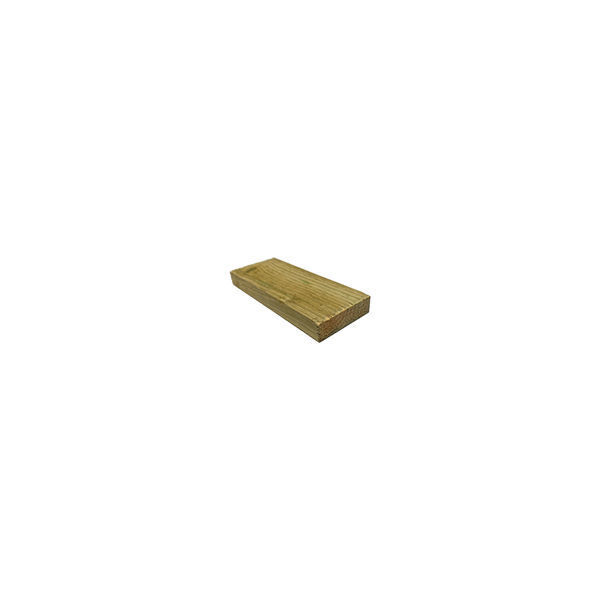

12 x 41mm x 100mm Precut Decking Spindle Spacer - Pack 30

- 41mm x 41mm square spindles.
- Pressure treated for durability.
- Based on a gap of 99mm in between spindles, 7.14 spindles cover 1 metre.

Galvanised mini joist hanger for constructing timber to timber framework. Precision formed and engineered for fast installation and maximum loads.

- Suitable for hanging 47mm wide timber
- Width - 115mm (including fixing wings)
- Length - 62mm
- Depth - 48mm

Install using 3.75 x 30mm square twist nails:
16 nail holes / hanger
1 kg square twist nails installs 21 hangers

This 3.6m decking balustrade component is a dual purpose profile designed for use as a handrail and base rail.

- Approximate finished dimensions:
- Width = 80mm (max)
- Depth = 35mm (max)
- Length = 3.6m
- Groove = 12mm x 41mm (for 41mm spindles)
- Quality, Slow-grown redwood
- Pressure treated green for outdoor use

Price is for one piece, spindle spacer sold separately

Premium Quality Softwood Decking

- Profile machined from 32 x 125mm timber, finished size approx. 28 x 120mm
- Dual sided pattern - smooth / grooved
- Machined from 5th grade Redwood, quality slow-grown material
- Pressure treated green, 15 year Treated-Right Warranty, details in Downloads tab below
- This decking product is DeckMark accredited
- Maximum joist centres - 450mm
- We have stocked this decking profile since 2010 due to popularity

A self tapping bolt suitable for concrete, stone, brick, marble, wood and block (solid or hollow). Safe anchorage achieved without the need of high tightening forces. Can be removed and re-fixed into the same hole, providing the thread is correctly aligned. No expansion forces enables close to the edge fixing.

Drill Bit Dia. - 10mm
Anchor Length - 150mm
Washer Size - 12mm (M12)
Min Hole Depth - 70mm
Min Over Drill Depth - 20mm
Min. Embed Depth - 50mm
Max. Fixture Thickness - 100mm
Drill Bit Dia. for clearance - 12mm (to prevent binding when tightening bolt)
Head Type - Hex Head, 17mm (Across Flats)
Driver Type - Impact driver, socket, spanner
Max Tightening Torque - 60Nm

Carriage Bolt; cup square hex, 20mm mushroom head, BZP finish (Bright Zinc Plate). Designed for bolting through timber.

Square hex refers to the square section attached to the mushroom head, this sinks into timber and stops the bolt from spinning when the nut is tightened.

Supplied with one standard hex nut, washers sold separately.
