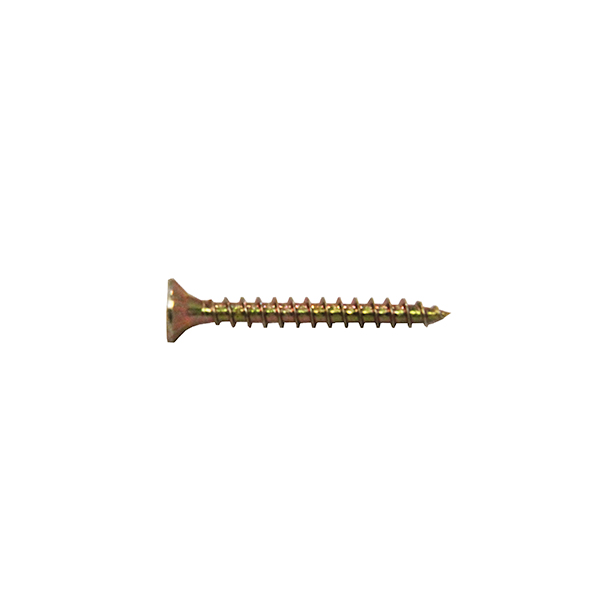

4.0 x 30mm Impact Pozi Woodscrews - Box 200

125mm Feather Edge Boards are tapered boards that are vertically lapped to form a solid fence.
Feather-edge can also be fitted horizontally as a budget cladding.

- 125mm Board Width
- 10 boards needed per linear metre (25mm overlap)
- Cut from 22 x 125mm
- Finished size approx. 12mm on thick edge tapering to 6mm on thin edge
- Homegrown Spruce
- Sawn finish
- Pressure treated green

Timber batten is a general purpose building material that has many uses for trade and DIY.

- Fine-sawn finish
- Pressure treated green

Galvanised steel bracket for attaching 75mm triangular Arris Rail to square posts or wall plates. Minimum post/wall plate width is 45mm.

Angle: 62 x 62mm (suits 75mm Arris Rail)
Wings: 42 x 155mm (overall width)
Length: 285mm
Fixing Holes: (10x) 5mm diameter + (2x) 27mm x 6mm slots

Planed and pressure-treated, joinery grade softwood.
Build your own contemporary slatted screen fencing. Create heavy duty and decorative fencing screens, perfect for fence panels to create partitions, obscure visibility, pergola shade screens, a contemporary way to increase the height of fencing & garden walls.

- Planed all round timber, with 4 eased (rounded) corners
- Machined from 25 x 50mm, finished size 20 x 45mm
- 2.4m long ±5mm
- High quality, slow grown redwood
- Pressure Treated green, 15 year Treat-Right Warranty, details in Downloads tab below
- 18.2 linear metres needed to cover 1m², this is based on a 10mm gap between slats

If you need help with your calculations for your screening project, please get in touch.

Timber carcassing, general purpose building timber.

- Machined from 47 x 50mm, finished size approx. 45 x 45mm
- Smooth regularised finish
- Good quality, slow grown softwood
- Pressure treated green

A self tapping bolt suitable for concrete, stone, brick, marble, wood and block (solid or hollow). Safe anchorage achieved without the need of high tightening forces. Can be removed and re-fixed into the same hole, providing the thread is correctly aligned. No expansion forces enables close to the edge fixing.

Drill Bit Dia. - 10mm
Anchor Length - 75mm
Washer Size - 12mm (M12)
Min Hole Depth - 70mm
Min Over Drill Depth - 20mm
Min. Embed Depth - 50mm
Max. Fixture Thickness - 25mm
Drill Bit Dia. for clearance - 12mm (to prevent binding when tightening bolt)
Head Type - Hex Head, 17mm (Across Flats)
Driver Type - Impact driver, socket, spanner
Max Tightening Torque - 60Nm
