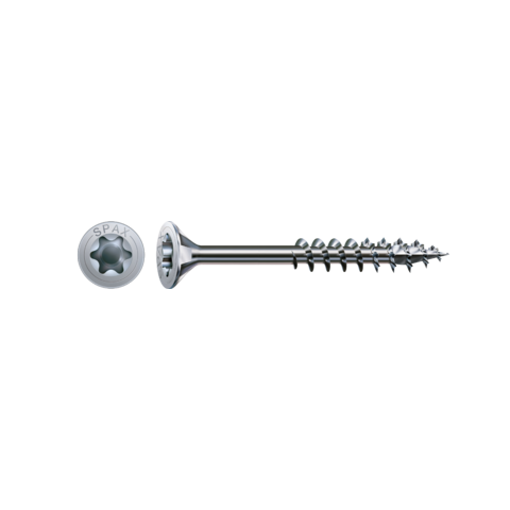

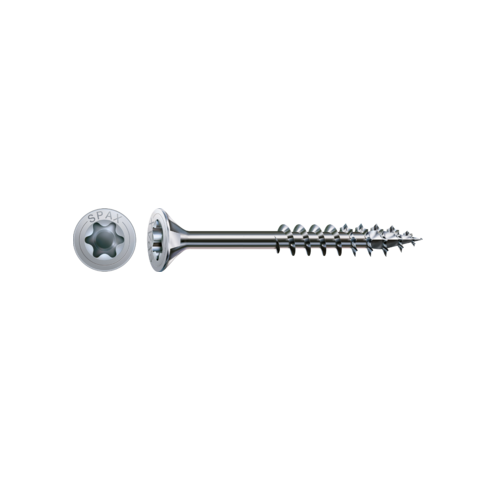

4.0 x 45mm Spax Wirox Woodscrews - Box 200

Planed and pressure-treated, joinery grade softwood.

Build your own contemporary slatted screen fencing. Create heavy duty and decorative fencing screens, perfect for fence panels to create partitions, obscure visibility, pergola shade screens, a contemporary way to increase the height of fencing & garden walls.

- Planed all round timber, with 2 eased (rounded) corners
- Machined from 25 x 75mm, finished size 20 x 70mm
- High quality, slow grown redwood
- Pressure Treated green, 15 year Treat-Right Warranty, details in Downloads tab below
- 12.5 linear metres needed to cover 1m², this is based on a 10mm gap between slats
- We recommend fitting vertical battens at 600mm centres (max.)

If you need help to work out what you need for your screening project, please get in touch.

CLS (Canadian Lumber Standard), a general purpose, non-structural grade, untreated building timber. Typically used for internal first fix applications, E.g. non-structural framing & stud walls.

- Machined from 50 x 100mm, finished size approx. 38 x 89mm
- Smooth regularised finish
- Grade C16
- Untreated softwood

A self-tapping Masonry Screw for brick and concrete, a popular fixing to fit window frames. An easy to use fixing that does not require plastic plugs, it has a high resistance to fire compared to nylon fixings. This screw is a friction fixing which minimises expansion stress in the base material, this allows fixing near to the edge, and gives greater loading performance than most nylon fixings.
To use: pre-drill a 6mm pilot hole, use a drill or impact driver fitted with T30 bit to drive the screw in.

T30 bit and white cover caps included when bought in box quantities of 100.

Drill Bit Dia. - 6mm
Min. Embed Depth - 45mm
Head Type - T30 Torx
Driver Type - Drill / Impact Driver

A self-tapping Masonry Screw for brick and concrete, a popular fixing to fit window frames. An easy to use fixing that does not require plastic plugs, it has a high resistance to fire compared to nylon fixings. This screw is a friction fixing which minimises expansion stress in the base material, this allows fixing near to the edge, and gives greater loading performance than most nylon fixings.
To use: pre-drill a 6mm pilot hole, use a drill or impact driver fitted with T30 bit to drive the screw in.

T30 bit and white cover caps included when bought in box quantities of 100.

Drill Bit Dia. - 6mm
Min. Embed Depth - 45mm
Head Type - T30 Torx
Driver Type - Drill / Impact Driver

Metal brace for strengthening corners. Can be used for internal or external corners.
Pre-drilled for use with countersunk screws, countersunk on both sides of fixing hole.
Bright Zinc Plated (BZP) for corrosion resistance.

Thickness: 1.5mm
Width: 16mm
Length: 50mm x 50mm
Fixing Holes: 5.0mm (x4)

The Simpson Strong-Tie ABR90 (previously E2/2.5/7090) is a heavy-duty reinforced angle bracket (reinforced in corner) for many applications. Galvanised for corrosion resistance.

Measurements (Ref. image 2):
A: 90mm
B: 90mm
C: 65mm
Thickness: 2.5mm
Fixing Holes: 11.5mm (x2) + 5.0mm (x20)
