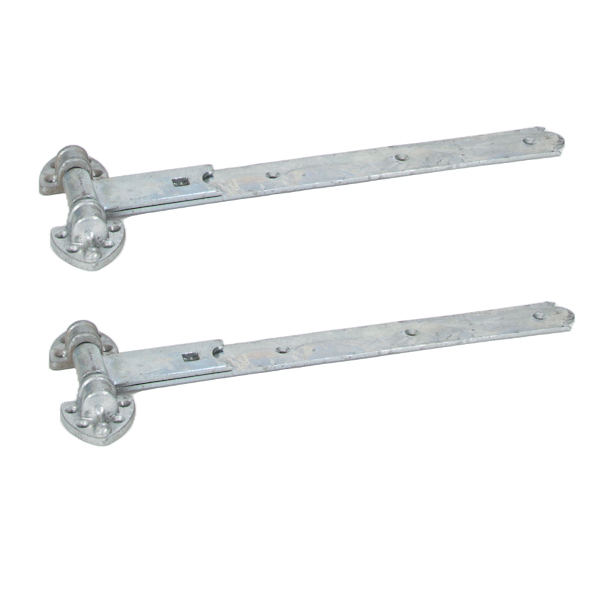

A pair of heavy-duty gate hinges suitable for hanging gates, shed doors etc. Cups are fitted to the top & bottom of the hinge pivot, which secures the gate firmly in position and prevents the gate from being lifted or removed. Galvanised finish for long service life. Fixings are sold separately, contact us if you would like to add fixings to your order.
Dimensions:
Cups: 65 x 65mm
Length excluding pivot: 440mm
Length including pivot: 465mm
Pivot: 15mm diameter
Hinge width: 48mm
Hinge depth: 4mm
Screw holes (x3): 7mm diameter, countersunk
Bolt hole: 14 x 14mm (use M12 carriage bolt, cup square hex)
