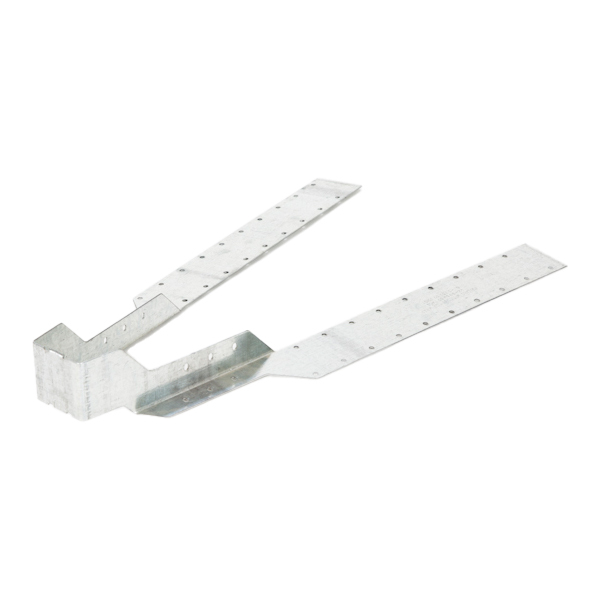

Galvanised joist hanger for constructing timber to timber framework. Precision formed and engineered for fast installation and maximum loads.
- Suitable for 47mm wide timber
- Width - 145mm (including fixing wings)
- Length - 480mm
- Depth - 65mm
Galvanised joist hanger with extra long legs. Wider strap provides more surface area on the supporting timber and allows increased nail spacing.
Minimum and maximum nailing schedules are stamped into the strap providing correct installation information for site operatives.
Install using 3.75 x 30mm square twist nails
Nailing without top wrap: 28 nails / hanger
1 kg square twist nails installs 12 hangers
Nailing with top wrap: 18 nails / hanger
1 kg square twist nails installs 19 hangers
