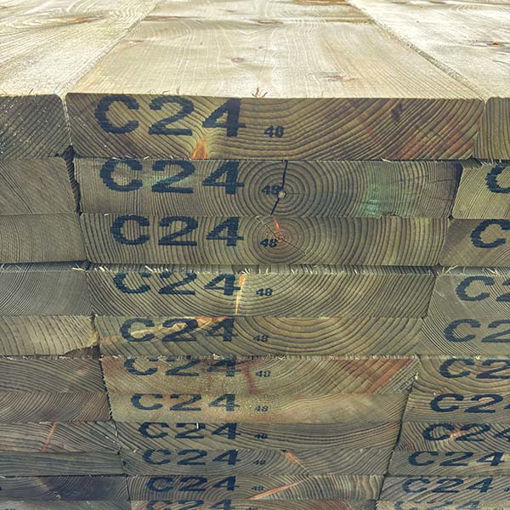

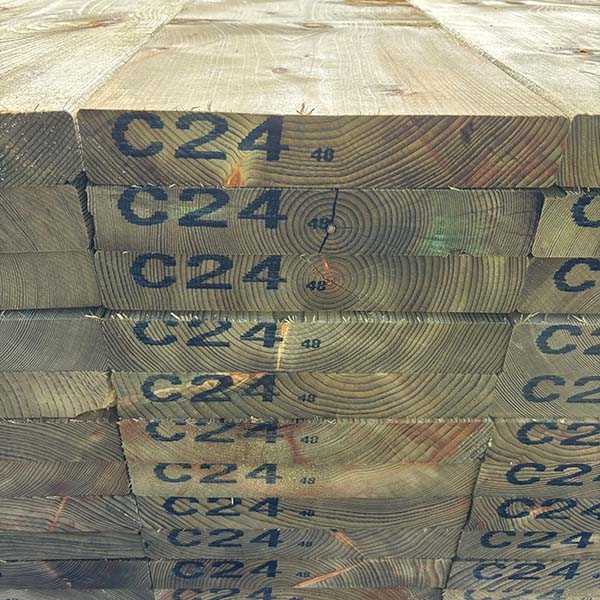

47 x 300mm x 4.8m C24 - Treated

A heavy steel washer, for general use with bolts and threaded bar (studding).
BZP (Bright Zinc Plate) finish.

Dimensions: 2mm x 24mm Diameter
11mm Bolt Hole: To suit M10 thread

The Simpson Strong-Tie ABR90 (previously E2/2.5/7090) is a heavy-duty reinforced angle bracket (reinforced in corner) for many applications. Galvanised for corrosion resistance.

Measurements (Ref. image 2):
A: 90mm
B: 90mm
C: 65mm
Thickness: 2.5mm
Fixing Holes: 11.5mm (x2) + 5.0mm (x20)

A heavy steel washer, for general use with bolts and threaded bar (studding).
BZP (Bright Zinc Plate) finish.

Dimensions: 2mm x 28mm Diameter
13mm Bolt Hole: To suit M12 thread

Hex head coach screw, for heavy-duty applications. Suitable for fixing into timber, can fix into brickwork and masonry with an M10 plug. M10 washers sold separately.

- Length excludes 7mm bolt head
- 105mm screw thread, 45mm unthreaded
- Bright Zinc Plated finish (BZP)
- Pre-drill timber with 6 - 8mm pilot hole
- Hex Head fits a 17mm Spanner

A self tapping bolt suitable for concrete, stone, brick, marble, wood and block (solid or hollow). Safe anchorage achieved without the need of high tightening forces. Can be removed and re-fixed into the same hole, providing the thread is correctly aligned. No expansion forces enables close to the edge fixing.

Drill Bit Dia. - 10mm
Anchor Length - 100mm
Washer Size - 12mm (M12)
Min Hole Depth - 70mm
Min Over Drill Depth - 20mm
Min. Embed Depth - 50mm
Max. Fixture Thickness - 50mm
Drill Bit Dia. for clearance - 12mm (to prevent binding when tightening bolt)
Head Type - Hex Head, 17mm (Across Flats)
Driver Type - Impact driver, socket, spanner
Max Tightening Torque - 60Nm

- Premium 5th grade Redwood Softwood Decking
- Machined from 38 x 125mm timber to approx. 33 x 120mm
- Dual-sided groove pattern
- Pressure treated green with 15-year warranty
- Maximum joist centres of 600mm.
