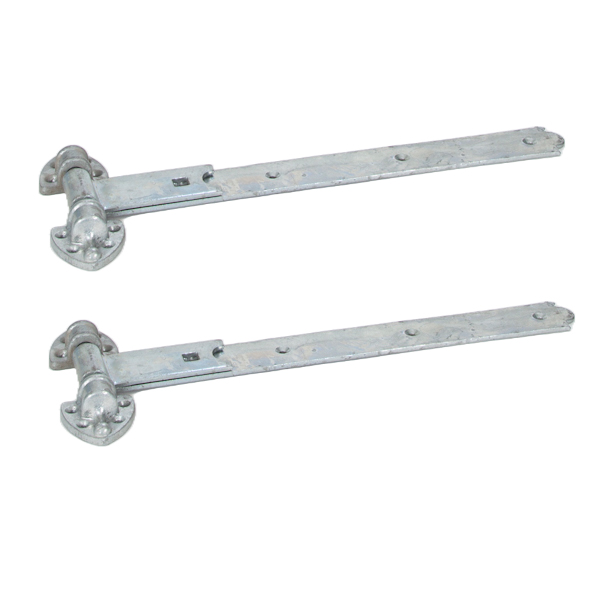

A pair of heavy-duty gate hinges suitable for fitting gates, shed doors etc. Cups are fitted to the top & bottom of the pivot, which secures the gate firmly in position and prevents the gate from being lifted or removed. They are galvanised for long service life. Fixings are sold separately, contact us if you would like to add fixings to your order.
Dimensions:
Cups: 67 x 67mm
Length excluding pivot: 750mm
Length including pivot: 775mm
Pivot: 19mm diameter
Hinge width: 57mm
Hinge depth: 4mm
Screw holes: 7mm diameter, countersunk
Bolt hole: 14 x 14mm (use M12 carriage bolt, cup square hex)
