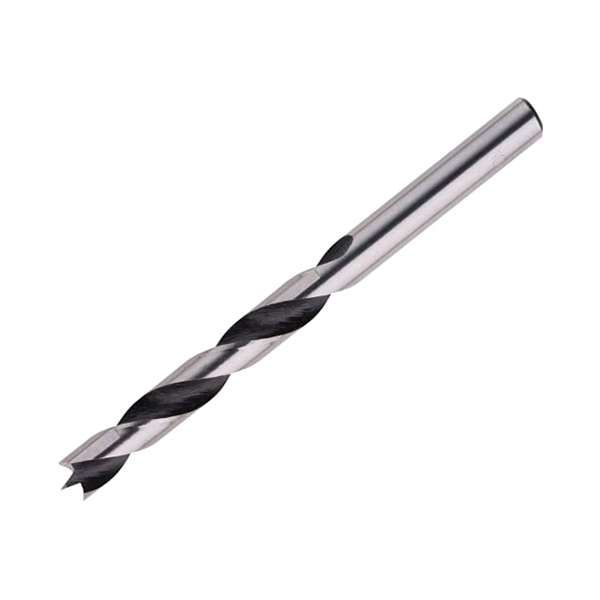

8mm x 117mm Irwin Brad Point Drill Bit

A self tapping bolt suitable for concrete, stone, brick, marble, wood and block (solid or hollow). Safe anchorage achieved without the need of high tightening forces. Can be removed and re-fixed into the same hole, providing the thread is correctly aligned. No expansion forces enables close to the edge fixing.

Drill Bit Dia. - 8mm
Anchor Length - 100mm
Washer Size - 10mm (M10)
Min Hole Depth - 55mm
Min Over Drill Depth - 15mm
Min. Embed Depth - 40mm
Max. Fixture Thickness - 60mm
Drill Bit Dia. for clearance - 10mm (to prevent binding when tightening bolt)
Head Type - Hex Head, 15mm (Across Flats)
Driver Type - Impact driver, socket, spanner
Max Tightening Torque - 40Nm

A self-tapping Masonry Screw for brick and concrete, a popular fixing to fit window frames. An easy to use fixing that does not require plastic plugs, it has a high resistance to fire compared to nylon fixings. This screw is a friction fixing which minimises expansion stress in the base material, this allows fixing near to the edge, and gives greater loading performance than most nylon fixings.
To use: pre-drill a 6mm pilot hole, use a drill or impact driver fitted with T30 bit to drive the screw in.

T30 bit and white cover caps included when bought in box quantities of 100.

Drill Bit Dia. - 6mm
Min. Embed Depth - 45mm
Head Type - T30 Torx
Driver Type - Drill / Impact Driver

Carriage Bolt; cup square hex, 20mm mushroom head, BZP finish (Bright Zinc Plate). Designed for bolting through timber.

Square hex refers to the square section attached to the mushroom head, this sinks into timber and stops the bolt from spinning when the nut is tightened.

Supplied with one standard hex nut, washers sold separately.

Hex Nyloc Nut with metric thread, for general use with bolts and threaded bar (studding).
The Nyloc insert prevents accidental loosening caused by vibration.
BZP (Bright Zinc Plate) finish.

Thread: 8mm - Metric
Depth: 8mm
Spanner Size: 13mm

Steel washer, for general use with bolts and threaded bar (studding).
BZP (Bright Zinc Plate) finish.

Dimensions: 1.5mm x 21mm Diameter
9mm Bolt Hole: To suit M8 thread

Treated carcassing timber conquers outdoor projects!
- Machined from 47 x 150mm, finished size approx. 45 x 145mm
- Smooth finish and C24 graded
- Premium quality, slow-grown softwood
- Pressure-treated green for durability
