A self tapping bolt suitable for concrete, stone, brick, marble, wood and block (solid or hollow). Safe anchorage achieved without the need of high tightening forces. Can be removed and re-fixed into the same hole, providing the thread is correctly aligned. No expansion forces enables close to the edge fixing.

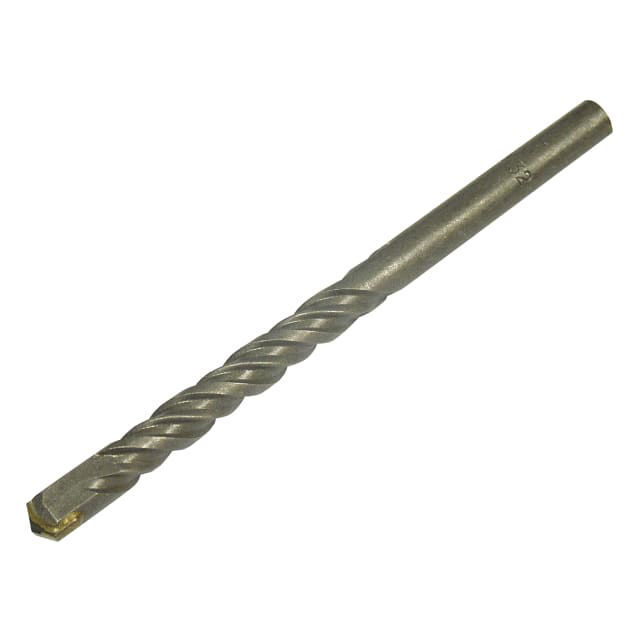

Drill Bit Dia. - 8mm
Anchor Length - 100mm
Washer Size - 10mm (M10)
Min Hole Depth - 55mm
Min Over Drill Depth - 15mm
Min. Embed Depth - 40mm
Max. Fixture Thickness - 60mm
Drill Bit Dia. for clearance - 10mm (to prevent binding when tightening bolt)
Head Type - Hex Head, 15mm (Across Flats)
Driver Type - Impact driver, socket, spanner
Max Tightening Torque - 40Nm
Stock Availability: 206 in stock
