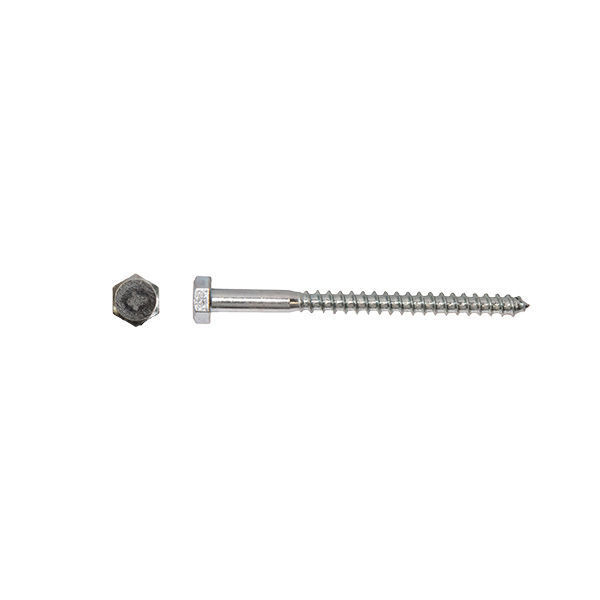

M10 x 130mm Coach Screw

Steel washer, for general use with bolts and threaded bar (studding).
BZP (Bright Zinc Plate) finish.

Dimensions: 2mm x 24mm Diameter
11mm Bolt Hole: To suit M10 thread

Galvanised Truss Clip for constructing timber to timber framework. Precision formed and engineered for fast installation and maximum loads.

- Suitable for securing 47mm wide timber
- Overall Width - 105mm (including fixing wings)
- Length - 100mm

Install using 3.75 x 30mm square twist nails
6 nail holes / truss clip
1 kg square twist nails installs approx. 58 truss clips

- 41mm x 41mm square spindles.
- Pressure treated for durability.
- Based on a gap of 99mm in between spindles, 7.14 spindles cover 1 metre.

Timber carcassing, general purpose building timber.

- Machined from 47 x 150mm, finished size approx. 45 x 145mm
- Smooth regularised finish
- Grade C24
- Good quality, slow grown softwood
- Pressure treated green

Treated timber carcassing for general building projects.
- Machined from 47 x 100mm, finished size approx. 45 x 95mm
- Smooth regularised finish
- Grade C24
- Good quality, slow grown softwood
- Pressure treated green

A self tapping bolt suitable for concrete, stone, brick, marble, wood and block (solid or hollow). Safe anchorage achieved without the need of high tightening forces. Can be removed and re-fixed into the same hole, providing the thread is correctly aligned. No expansion forces enables close to the edge fixing.

Drill Bit Dia. - 8mm
Anchor Length - 100mm
Washer Size - 10mm (M10)
Min Hole Depth - 55mm
Min Over Drill Depth - 15mm
Min. Embed Depth - 40mm
Max. Fixture Thickness - 60mm
Drill Bit Dia. for clearance - 10mm (to prevent binding when tightening bolt)
Head Type - Hex Head, 15mm (Across Flats)
Driver Type - Impact driver, socket, spanner
Max Tightening Torque - 40Nm
