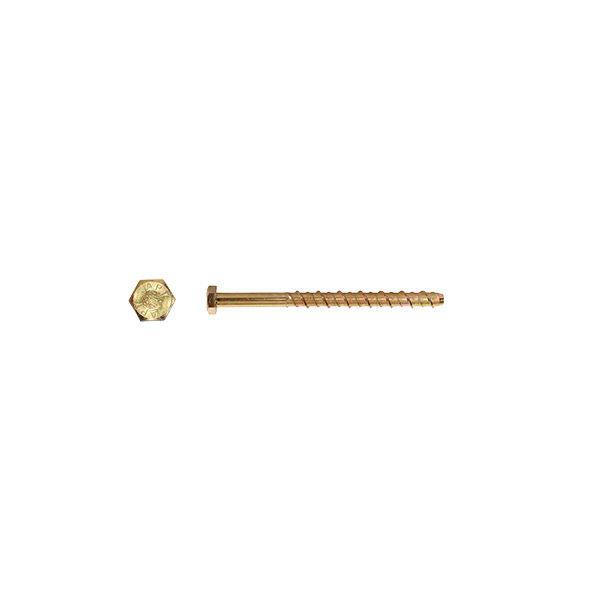

    M10 x 150mm Masonry Bolt

    A self tapping bolt suitable for concrete, stone, brick, marble, wood and block (solid or hollow). Safe anchorage achieved without the need of high tightening forces. Can be removed and re-fixed into the same hole, providing the thread is correctly aligned. No expansion forces enables close to the edge fixing.

    Drill Bit Dia. - 10mm
    Anchor Length - 150mm
    Washer Size - 12mm (M12)
    Min Hole Depth - 70mm
    Min Over Drill Depth - 20mm
    Min. Embed Depth - 50mm
    Max. Fixture Thickness - 100mm
    Drill Bit Dia. for clearance - 12mm (to prevent binding when tightening bolt)
    Head Type - Hex Head, 17mm (Across Flats)
    Driver Type - Impact driver, socket, spanner
    Max Tightening Torque - 60Nm
    Bulk Buy Discounts:
    Quantity
    25+
    Price
    £1.33
    Availability: 127 in stock
    £1.99 Inc. VAT
    i h

    A self tapping bolt suitable for concrete, stone, brick, marble, wood and block (solid or hollow). Safe anchorage achieved without the need of high tightening forces. Can be removed and re-fixed into the same hole, providing the thread is correctly aligned. No expansion forces enables close to the edge fixing.


    Drill Bit Dia. - 10mm
    Anchor Length - 150mm
    Washer Size - 12mm (M12)
    Min Hole Depth - 70mm
    Min Over Drill Depth - 20mm
    Min. Embed Depth - 50mm
    Max. Fixture Thickness - 100mm
    Drill Bit Dia. for clearance - 12mm (to prevent binding when tightening bolt)
    Head Type - Hex Head, 17mm (Across Flats)
    Driver Type - Impact driver, socket, spanner
    Max Tightening Torque - 60Nm

    Products specifications
    FinishYellow zinc
    MaterialMasonry
    Length150mm
    Diameter10mm
    *
    *
    *
    *
