M12 x 100mm Carriage Bolt

125mm Feather Edge Boards are tapered boards that are vertically lapped to form a solid fence.
Feather-edge can also be fitted horizontally as a budget cladding.

- 125mm Board Width
- 10 boards needed per linear metre (25mm overlap)
- Cut from 22 x 125mm
- Finished size approx. 12mm on thick edge tapering to 6mm on thin edge
- Homegrown Spruce
- Sawn finish
- Pressure treated green

Steel washer, for general use with bolts and threaded bar (studding).
BZP (Bright Zinc Plate) finish.

Dimensions: 2mm x 28mm Diameter
13mm Bolt Hole: To suit M12 thread

A concrete post for building raised decking; a heavy duty, durable alternative to timber posts. Raise the decking framework out of ground contact to increase the life and durability of timber components by eliminating absorption of ground moisture. The air gap beneath raised decking creates ventilation which allows timber components to fully dry (weather permitting), which helps to prevent fungus growth and rot.

The posts are notched for joists to sit on, there is also a 12mm bolt hole to secure the joist in place.

Dimensions: 100 x 100 x 900mm
Notch Dimensions: 45 x 83mm, 12mm bolt hole in middle

Timber carcassing, general purpose building timber.

- Machined from 47 x 150mm, finished size approx. 45 x 145mm
- Smooth regularised finish
- Grade C24
- Good quality, slow-grown softwood
- Pressure-treated green

Planed finish timber post cap for 75 x 75mm posts, pressure treated green. Protects post ends from weather and provides a smart finishing touch.

- Dimensions: 45mm (middle) x 99mm x 99mm
- Decorative chamfer on four sides
- Pressure treated
- Includes double ended screw (attached)

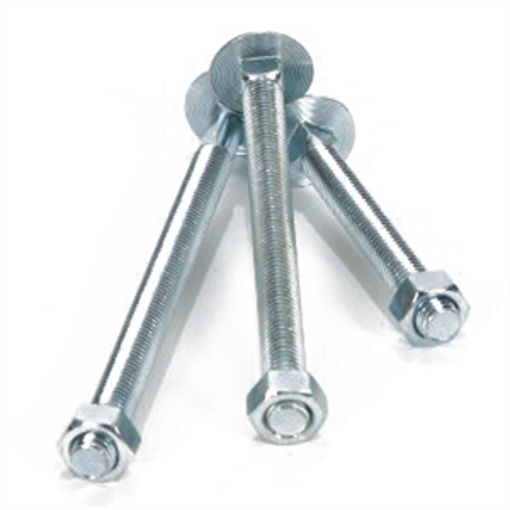

Carriage Bolt; cup square hex, 30mm mushroom head, BZP finish (Bright Zinc Plate). Designed for bolting through timber.

Square hex refers to the square section attached to the mushroom head, this sinks into timber and stops the bolt from spinning when the nut is tightened.

Supplied with one standard hex nut, washers sold separately.
