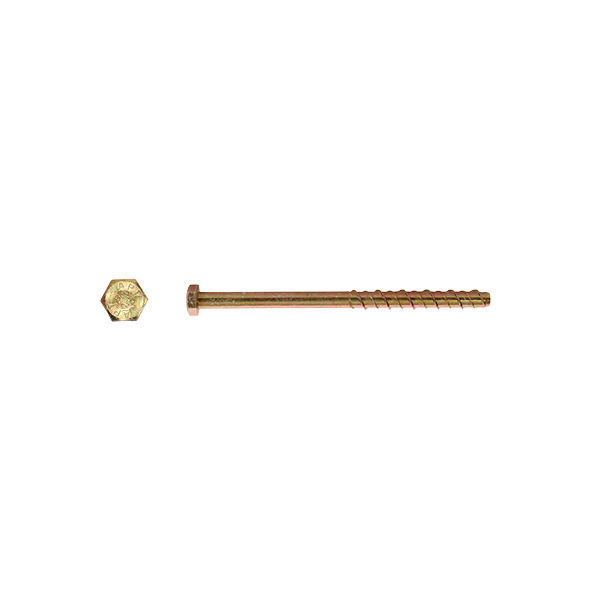

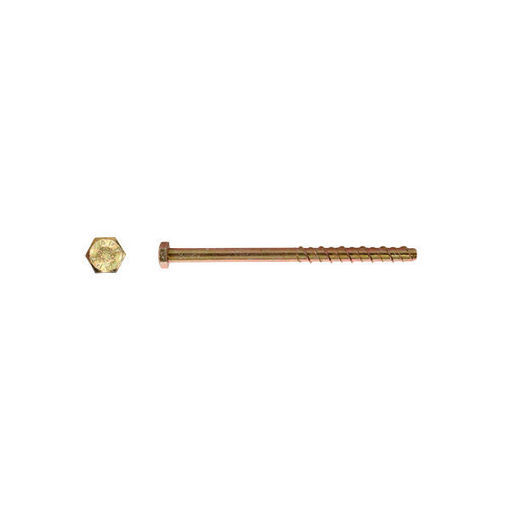

    M12 x 200mm Thunder Bolt

    A self tapping bolt suitable for concrete, stone, brick, marble, wood and block (solid or hollow). Safe anchorage achieved without the need of high tightening forces. Can be removed and re-fixed into the same hole, providing the thread is correctly aligned. No expansion forces enables close to the edge fixing.

    Drill Bit Dia. - 12mm
    Anchor Length - 200mm
    Washer Size - 14mm (M14)
    Min Hole Depth - 85mm
    Min Over Drill Depth - 25mm
    Min. Embed Depth - 60mm
    Max. Fixture Thickness - 140mm
    Drill Bit Dia. for clearance - 14mm (to prevent binding when tightening bolt)
    Head Type - Hex Head, 19mm (Across Flats)
    Driver Type - Impact driver, socket, spanner
    Max Tightening Torque - 80Nm
    Bulk Buy Discounts:
    Quantity
    20+
    Price
    £2.83
    Availability: 52 in stock
    £4.25 Inc. VAT
    i h

    A self tapping bolt suitable for concrete, stone, brick, marble, wood and block (solid or hollow). Safe anchorage achieved without the need of high tightening forces. Can be removed and re-fixed into the same hole, providing the thread is correctly aligned. No expansion forces enables close to the edge fixing.


    Drill Bit Dia. - 12mm
    Anchor Length - 200mm
    Washer Size - 14mm (M14)
    Min Hole Depth - 85mm
    Min Over Drill Depth - 25mm
    Min. Embed Depth - 60mm
    Max. Fixture Thickness - 140mm
    Drill Bit Dia. for clearance - 14mm (to prevent binding when tightening bolt)
    Head Type - Hex Head, 19mm (Across Flats)
    Driver Type - Impact driver, socket, spanner
    Max Tightening Torque - 80Nm

    Products specifications
    FinishYellow zinc
    MaterialMasonry
    Length200mm
    Diameter12mm
    *
    *
    *
    *
