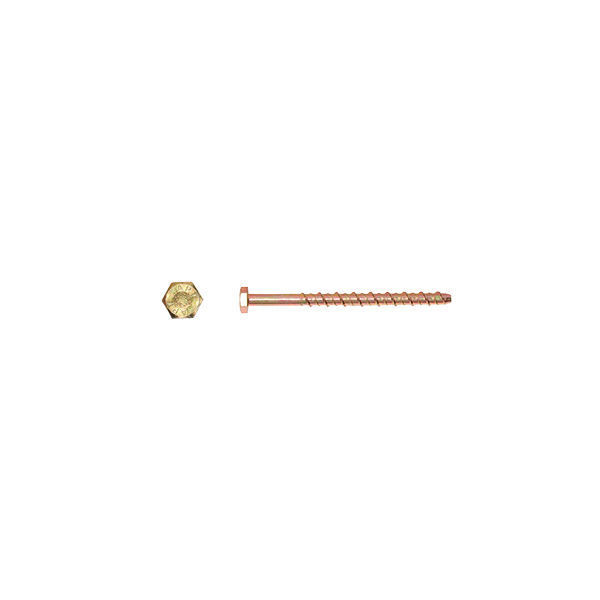

    M8 x 130mm Masonry Bolt

    A self tapping bolt suitable for concrete, stone, brick, marble, wood and block (solid or hollow). Safe anchorage achieved without the need of high tightening forces. Can be removed and re-fixed into the same hole, providing the thread is correctly aligned. No expansion forces enables close to the edge fixing.

    Drill Bit Dia. - 8mm
    Anchor Length - 130mm
    Washer Size - 10mm (M10)
    Min Hole Depth - 55mm
    Min Over Drill Depth - 15mm
    Min. Embed Depth - 40mm
    Max. Fixture Thickness - 90mm
    Drill Bit Dia. for clearance - 10mm (to prevent binding when tightening bolt)
    Head Type - Hex Head, 15mm (Across Flats)
    Driver Type - Impact driver, socket, spanner
    Max Tightening Torque - 40Nm
    Bulk Buy Discounts:
    Quantity
    50+
    Price
    £0.78
    Availability: 198 in stock
    £1.18 Inc. VAT
    i h

    A self tapping bolt suitable for concrete, stone, brick, marble, wood and block (solid or hollow). Safe anchorage achieved without the need of high tightening forces. Can be removed and re-fixed into the same hole, providing the thread is correctly aligned. No expansion forces enables close to the edge fixing.


    Drill Bit Dia. - 8mm
    Anchor Length - 130mm
    Washer Size - 10mm (M10)
    Min Hole Depth - 55mm
    Min Over Drill Depth - 15mm
    Min. Embed Depth - 40mm
    Max. Fixture Thickness - 90mm
    Drill Bit Dia. for clearance - 10mm (to prevent binding when tightening bolt)
    Head Type - Hex Head, 15mm (Across Flats)
    Driver Type - Impact driver, socket, spanner
    Max Tightening Torque - 40Nm

    Products specifications
    FinishYellow zinc
    MaterialMasonry
    Length130mm
    Diameter8mm
    *
    *
    *
    *
