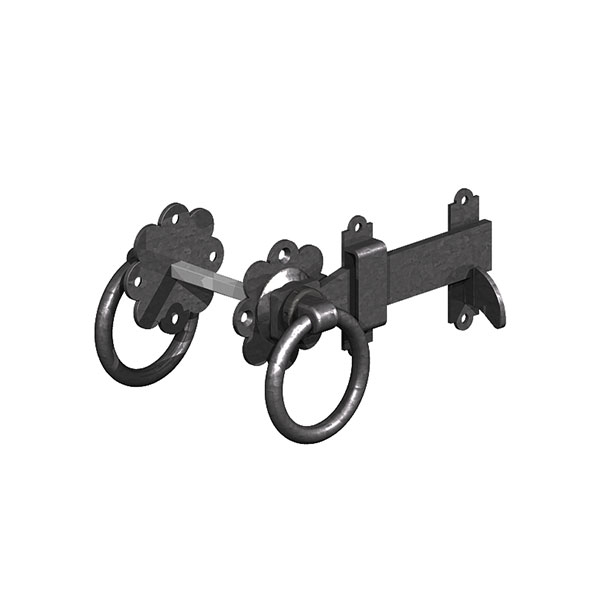

Plain Ring Gate Latch - Black

125mm Feather Edge Boards are tapered boards that are vertically lapped to form a solid fence.
Feather-edge can also be fitted horizontally as a budget cladding.

- 125mm Board Width
- 10 boards needed per linear metre (25mm overlap)
- Cut from 22 x 125mm
- Finished size approx. 12mm on thick edge tapering to 6mm on thin edge
- Homegrown Spruce
- Sawn finish
- Pressure treated green

125mm Feather Edge Boards are tapered boards that are vertically lapped to form a solid fence.
Feather-edge can also be fitted horizontally as a budget cladding.

- 125mm Board Width
- 10 boards needed per linear metre (25mm overlap)
- Cut from 22 x 125mm
- Finished size approx. 12mm on thick edge tapering to 6mm on thin edge
- Homegrown Spruce
- Sawn finish
- Pressure treated green

125mm Feather Edge Boards are tapered boards that are vertically lapped to form a solid fence.
Feather-edge can also be fitted horizontally as a budget cladding.

- 125mm Board Width
- 10 boards needed per linear metre (25mm overlap)
- Cut from 22 x 125mm
- Finished size approx. 12mm on thick edge tapering to 6mm on thin edge
- Homegrown Spruce
- Sawn finish
- Pressure treated green

A self tapping bolt suitable for concrete, stone, brick, marble, wood and block (solid or hollow). Safe anchorage achieved without the need of high tightening forces. Can be removed and re-fixed into the same hole, providing the thread is correctly aligned. No expansion forces enables close to the edge fixing.

Drill Bit Dia. - 8mm
Anchor Length - 75mm
Washer Size - 10mm (M10)
Min Hole Depth - 55mm
Min Over Drill Depth - 15mm
Min. Embed Depth - 40mm
Max. Fixture Thickness - 35mm
Drill Bit Dia. for clearance - 10mm (to prevent binding when tightening bolt)
Head Type - Hex Head, 15mm (Across Flats)
Driver Type - Impact driver, socket, spanner
Max Tightening Torque - 40Nm

A heavy steel washer, for general use with bolts and threaded bar (studding).
BZP (Bright Zinc Plate) finish.

Dimensions: 2mm x 24mm Diameter
11mm Bolt Hole: To suit M10 thread

Galvanised steel bracket for attaching 75mm triangular Arris Rail to square posts or wall plates. Minimum post/wall plate width is 45mm.

Angle: 62 x 62mm (suits 75mm Arris Rail)
Wings: 42 x 155mm (overall width)
Length: 285mm
Fixing Holes: (10x) 5mm diameter + (2x) 27mm x 6mm slots
