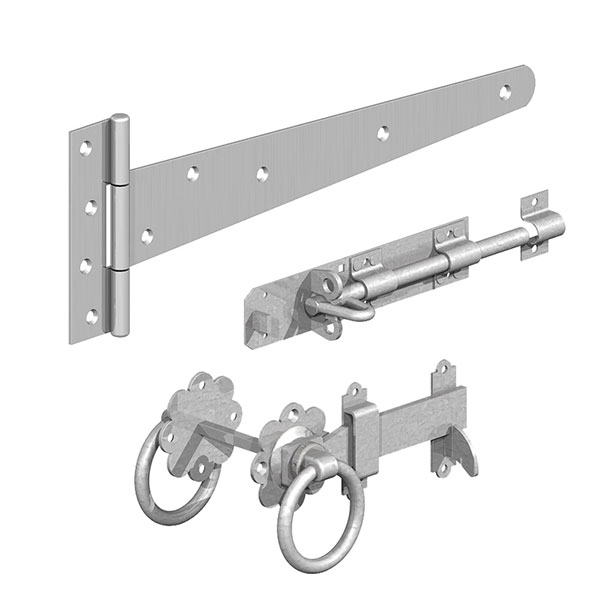

Gatemate Side Gate Fixing Kit - Galvanised (Includes Pair Of T-Hinges, Brenton Bolt & Ring Latch)

Planed and pressure-treated, joinery grade softwood.
Build your own contemporary slatted screen fencing. Create heavy duty and decorative fencing screens, perfect for fence panels to create partitions, obscure visibility, pergola shade screens, a contemporary way to increase the height of fencing & garden walls.

- Planed all round timber, with 4 eased (rounded) corners
- Machined from 25 x 50mm, finished size 20 x 45mm
- High quality, slow grown redwood
- Pressure Treated green, 15 year Treat-Right Warranty, details in Downloads tab below
- 18.2 linear metres needed to cover 1m², this is based on a 10mm gap between slats

If you need help to work out what you need for your screening project, please get in touch.

125mm Feather Edge Boards are tapered boards that are vertically lapped to form a solid fence.
Feather-edge can also be fitted horizontally as a budget cladding.

- 125mm Board Width
- 10 boards needed per linear metre (25mm overlap)
- Cut from 22 x 125mm
- Finished size approx. 12mm on thick edge tapering to 6mm on thin edge
- Homegrown Spruce
- Sawn finish
- Pressure treated green

125mm Feather Edge Boards are tapered boards that are vertically lapped to form a solid fence.
Feather-edge can also be fitted horizontally as a budget cladding.

- 125mm Board Width
- 10 boards needed per linear metre (25mm overlap)
- Cut from 22 x 125mm
- Finished size approx. 12mm on thick edge tapering to 6mm on thin edge
- Homegrown Spruce
- Sawn finish
- Pressure treated green

A self tapping bolt suitable for concrete, stone, brick, marble, wood and block (solid or hollow). Safe anchorage achieved without the need of high tightening forces. Can be removed and re-fixed into the same hole, providing the thread is correctly aligned. No expansion forces enables close to the edge fixing.

Drill Bit Dia. - 8mm
Anchor Length - 75mm
Washer Size - 10mm (M10)
Min Hole Depth - 55mm
Min Over Drill Depth - 15mm
Min. Embed Depth - 40mm
Max. Fixture Thickness - 35mm
Drill Bit Dia. for clearance - 10mm (to prevent binding when tightening bolt)
Head Type - Hex Head, 15mm (Across Flats)
Driver Type - Impact driver, socket, spanner
Max Tightening Torque - 40Nm

Galvanised steel bracket for attaching 75mm triangular Arris Rail to square posts or wall plates. Minimum post/wall plate width is 45mm.

Angle: 62 x 62mm (suits 75mm Arris Rail)
Wings: 42 x 155mm (overall width)
Length: 285mm
Fixing Holes: (10x) 5mm diameter + (2x) 27mm x 6mm slots

Rapid setting post hole concrete, suitable for fixing all types of wooden, metal and concrete posts.

Post Mix is a pre-blended, quick setting concrete mix, which sets in approximately 10 minutes after mixing with water (depending on ambient temperature).
Simply half fill the hole with water, then pour the post mix in.

Fencing contractors typically allow 1½ to 2 bags per fence post (this varies depending on the hole and post size).

We offer 33% discount on post-mix when you pay & collect in store!
